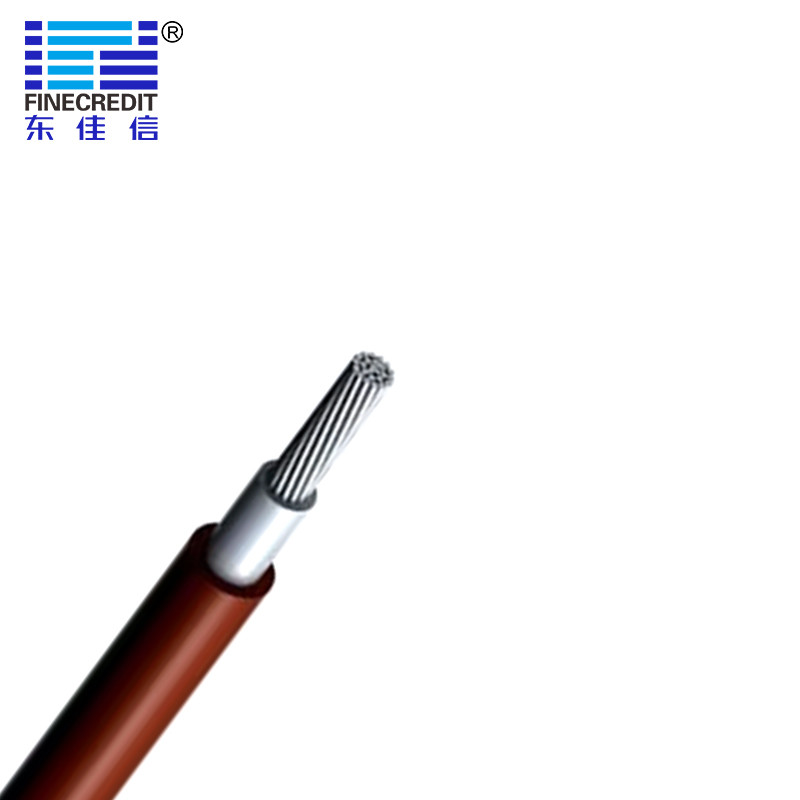

Ενιαία θήκη PVC χαμηλής τάσης καλωδίων h1z2z2-Κ πυρήνων 1.5mm2 φωτοβολταϊκή

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: DONGJIAXIN
Πιστοποίηση: TUV,ISO,CE,IEC
Αριθμό μοντέλου: Pv1-φ/h1z2z2-Κ
Ποσότητα παραγγελίας min: Διαπραγματεύσιμος
Τιμή: Negotiable
Συσκευασία λεπτομέρειες: Ξύλινο τύμπανο χάλυβα
Χρόνος παράδοσης: 7-15 εργάσιμες ημέρες
Όροι πληρωμής: L/C, T/T
Δυνατότητα προσφοράς: 100KM/Week
Πρότυπο όνομα: Pv1-φ/h1z2z2-Κ μέγεθος: 1.5mm2--35mm2
Εκτιμημένη τάση: 0.6/1 KV Τύπος: Χαμηλή τάση
Τύπος αγωγών: Επικασσιτερωμένος εύκαμπτος αγωγός χαλκού Θήκη: Ανθεκτικό PVC φωτός του ήλιου
μόνωση: HDPE (πολυαιθυλένιο υψηλής πυκνότητας) εφαρμογή: Σταθμός παραγωγής ηλεκτρικού ρεύματος, συνεχές ρεύμα δύναμης PV, σύστημα εναλλασσόμενου ρεύματος
Υψηλό φως:

Φωτοβολταϊκό καλώδιο IEC 1.5mm2

,

Φωτοβολταϊκό καλώδιο θηκών PVC IEC

4mm 6mm Single Core DC Solar PV Cable , Photovoltaic Wire Eco Friendly



Description:

PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.

H1Z2Z2-K, 1500V DC photovoltaic cable is used in the nominal 1.5KV DC voltage photovoltaic power generation system between the conductor and the conductor, and the conductor and the ground. It is an upgraded product on the basis of the original PV1-F-06/1KV photovoltaic cable. Better anti-aging effect.



Standards&Certificates:

EN 50618:2014;TUV.

Cable Structure:

Conductor Tinned Coppe, according to VDE 0295/IEC
60228, Class 5
Insulation Electron-beam cross-linked Polyolefin
Copolymer TUV2PfG/1169
Sheath Polyolefin Copolymer electron-beam cross-linked TUV2PfG/1169
Insulation/Sheath colour black/black, black/blue, red/red, blue/black, black/red,red/black, blue/blue,yellow/green or based on your demand



Application: PV1-F cable for indoor photovoltaic solar installation of electric equipment line.

Technical Parameter:

Product specifications(mm²) Approx.cable diameter Max resistance of conductor at 20℃ (Ω/km) Max resistance of conductor at 20℃ (Ω/km)
1.5 4.7 13.7 860
2.5 5.2 8.21 690
4 5.6 5.09 580
6 6.3 3.39 500
10 7.5 1.95 420
16 8.8 1.24 340



Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Product warranty period is 2 years.
5. We guarantee solve your problems within 24 hours in Shenzhen, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.





4mm 6mm Single Core DC Solar PV Cable , Photovoltaic Wire Eco Friendly 0









▼ Delivery Port :

Ενιαία θήκη PVC χαμηλής τάσης καλωδίων h1z2z2-Κ πυρήνων 1.5mm2 φωτοβολταϊκή 1 Ενιαία θήκη PVC χαμηλής τάσης καλωδίων h1z2z2-Κ πυρήνων 1.5mm2 φωτοβολταϊκή 2 Ενιαία θήκη PVC χαμηλής τάσης καλωδίων h1z2z2-Κ πυρήνων 1.5mm2 φωτοβολταϊκή 3
Port of Shenzhen Port of Hongkong

Port of Guangzhou



Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc
